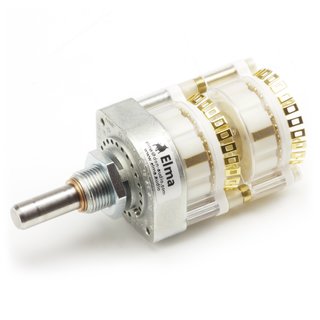

Elma Rotary switch Type 04 Eyelets 2 Wafer 2 x 12 Non-Shorting 30° 04-2124
- Up to 12 Positions multi wafer selector switch
- Very robust and versatile
- 25,000 switching cycles with up to 20.0 Ncm switching torque
- Gold plated contacts: 3 micron
- Robust metal housing with metal shaft
- Optional IP68 front panel sealing
- Operating temperature range: -40 to +85°C
- Various options and customization
- Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
- 6mm shaft
This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.
| Switching mode: | Non-Shorting |
| Pin type: | Eyelets |
| Shipping weight: | 0,10 Kg |
