Turns ratio: 2 + 2 : 1 + 1
Dims (Length x Width x Height above PCB (mm)): 43 x 28 x 21

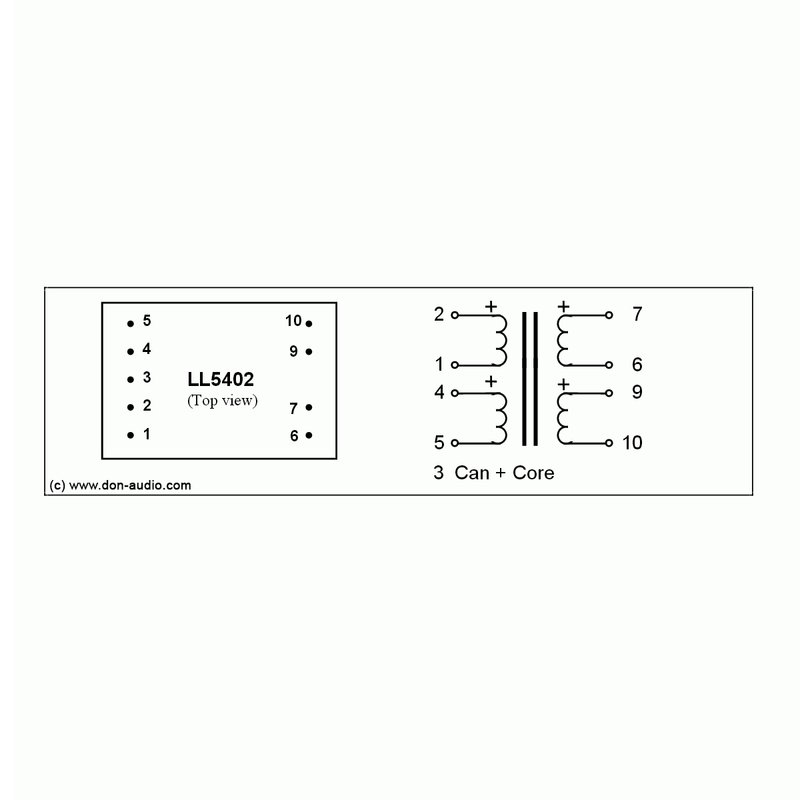

Pin layout (viewed from component side) and winding schematics:
Spacing between pins: 5.08 mm (0.2")
Spacing between rows of pins: 30.48 mm (1.2")
Weight: 92 g
Rec. PCB hole diameter: 1.5 mm
Static resistance of each primary: 30 W
Static resistance of each secondary: 7 W
Leakage inductance of secondaries (sec. in series): 0.2 mH
No-load impedance: >800 W @ 50 Hz, +20 dBU
Optimum source impedance: Minus 15 W (See application below)
Balance of output (according to IRT, source < 10 W , Load 600 W): > 60 dB
Distortion (connection as application example below, load 600 W) + 22 dBU 0.1% @ 50 Hz
Frequency response (as below , load 600 W): 20 Hz -- 40 kHz +/- 0.3 dB
Voltage loss across transformer (at midband with 600 W load): 0 dB
Isolation between primary and secondary windings / between
windings and core:
4 kV / 2 kV
| Gear: |
|
| Application: | Line Output |
| Shipping weight: | 0,12 Kg |
| Product weight: | 0,10 Kg |
