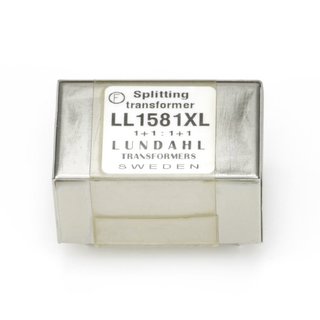

Lundahl LL1581XL Splitter Audio Übertrager
In many splitting applications, the splitting transformer must have a high immunity to input common mode signals, to stray magnetic fields from e.g. power transformers and to large ground potential differences in receiving systems. The LL1581XL is developed to handle those types of cases.
When designing the LL1581, Lundahl used their well established two coil structure to create a transformer with a high degree of symmetry. The transformer is built up from two primary windings (which should be used in parallel) and two secondary windings. Each secondary winding is built up from two sections, one from each coil. Its own electrostatic shields surround each secondary section. The symmetric structure results in an internal cancellation of noise signals caused by external magnetic field. It also increase immunity to ground noise between secondary systems and reduces the effects of input common mode signals.
The transformer is housed in a mu-metal can and is impregnated in solventless epoxy resin.
Dimensions (Max. L x W x H above PCB in mm): 38 x 24 x 20.5
Frequency responde (Ref: -6dNu, 1kHz): 10Hz - 100kHz +/- 0.5dB
When designing the LL1581, Lundahl used their well established two coil structure to create a transformer with a high degree of symmetry. The transformer is built up from two primary windings (which should be used in parallel) and two secondary windings. Each secondary winding is built up from two sections, one from each coil. Its own electrostatic shields surround each secondary section. The symmetric structure results in an internal cancellation of noise signals caused by external magnetic field. It also increase immunity to ground noise between secondary systems and reduces the effects of input common mode signals.
The transformer is housed in a mu-metal can and is impregnated in solventless epoxy resin.
Spezifications
Weight: 64gDimensions (Max. L x W x H above PCB in mm): 38 x 24 x 20.5
Frequency responde (Ref: -6dNu, 1kHz): 10Hz - 100kHz +/- 0.5dB
