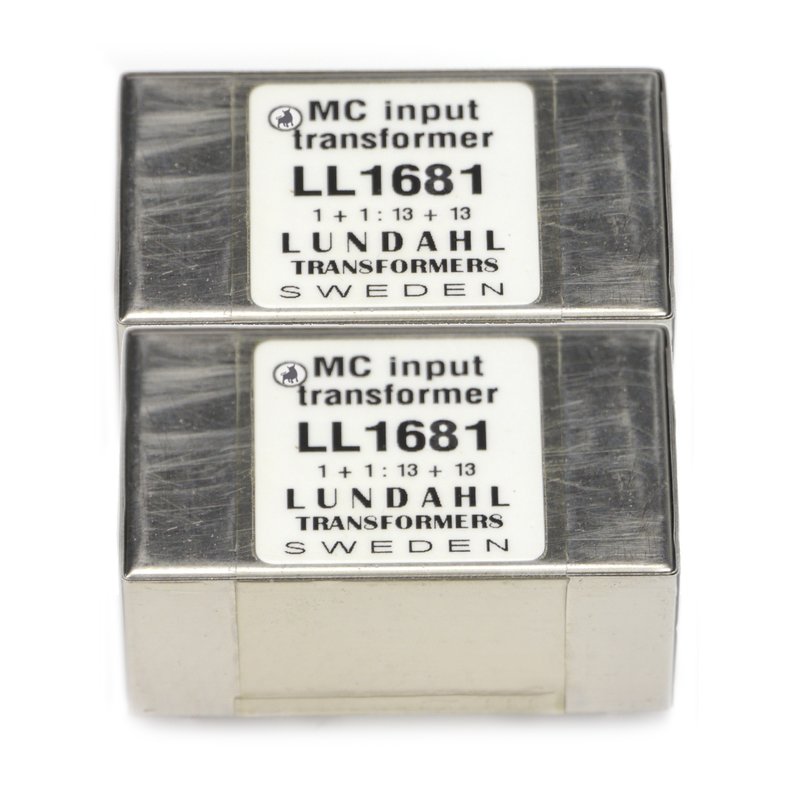

Lundahl LL1681 Matched Pair - MC Audio Übertrager
The LL1681 consists of two coils, each with a two-sectioned primary winding and one high level secondary winding (with paper insulation) separated by electrostatic shields. The transformer is magnetically shielded by a mu metal housing.
Turns ratio: 1 + 1 : 13 + 13
Dims (Length x Width x Height above PCB (mm)): 48 x 29 x 20
Spacing between pins: 5.08 mm (0.2")
Spacing between rows of pins: 35.56mm (1.4")
Weight: 90 g
Rec. PCB hole diameter: 1.5 mm
Turns ratio: 1 + 1 : 13 + 13
Dims (Length x Width x Height above PCB (mm)): 48 x 29 x 20
Spacing between pins: 5.08 mm (0.2")
Spacing between rows of pins: 35.56mm (1.4")
Weight: 90 g
Rec. PCB hole diameter: 1.5 mm
| Anwendung: | Moving Coil |
| Versandgewicht: | 0,10 Kg |
| Artikelgewicht: | 0,08 Kg |
Durchschnittliche Artikelbewertung
Dieser Artikel besteht aus
2 x Lundahl LL1681 MC Audio Übertrager
126,69 € *
