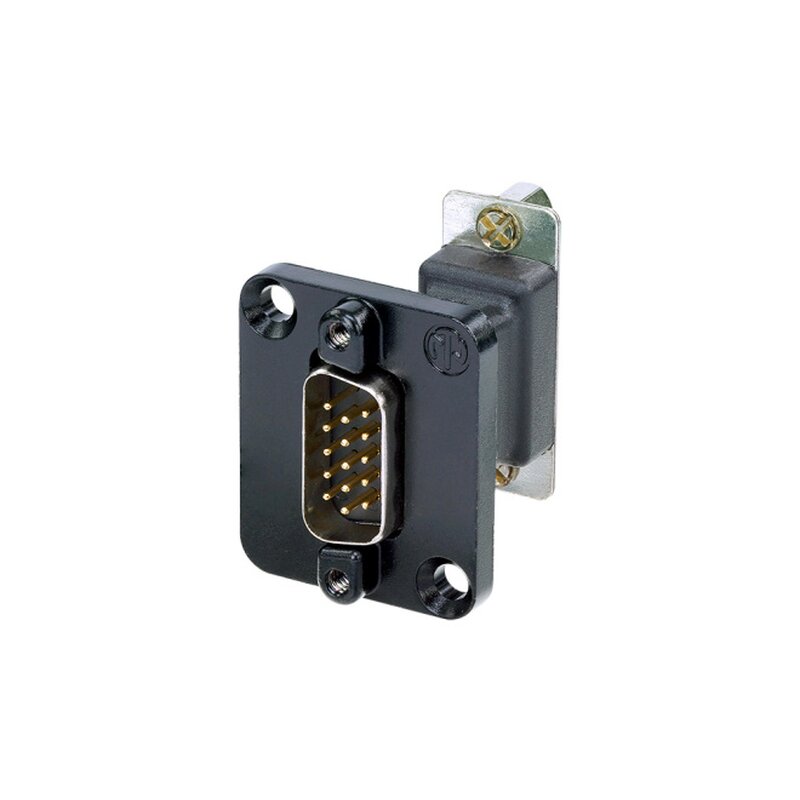

Neutrik NADB15MF-B D-SUB
15 pole D-SUB feedthrough, male to female, black D-shape housing
Features & Benefits
- Ideal for audio networking and integration of equipment into video systems
Product
Title
NADB15MF-B
Gender
male
Electrical
Contact resistance
30 m?
Insulation resistance
> 5 G?
Number of electronical contacts
15
Rated current per contact
3 A
Rated voltage
50 V ac
Dielectric strength
> 0.5 kVac
Mechanical
Panel thickness
4 mm
Wiring
Feedthrough
Mounting direction
Front mounting
Chassis shape
D
Material
Contact plating
Au
Contacts
Brass (CuZn39Pb3)
Insert
Steel , tin plated, PBT
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 V-0
Temperature range
-25 °C to +85 °C
| Series: | D-SUB |
