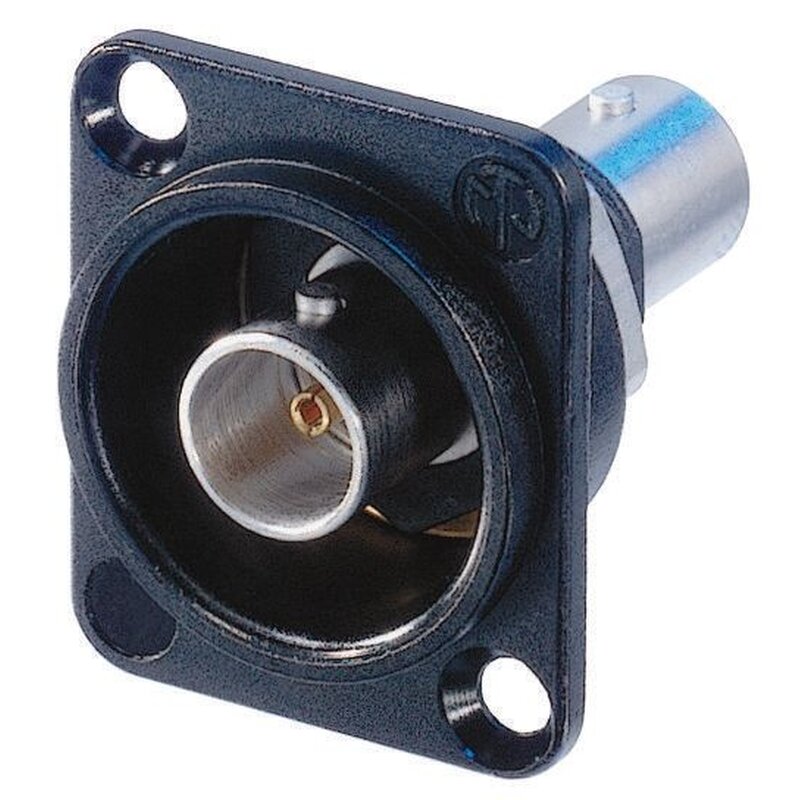

Isolated BNC chassis connector, feedthrough in black D-shape housing, protruding version (makes locking and unlocking of conventional BNC cable connectors easy)
Neutrik's BNC chassis connectors offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use in a D-shape housing (audio industry standard).
Features & Benefits
- Gold plated cage type center contact
- True 75 ? design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing
- Protruding bulkhead jack (makes locking and unlocking of conventional BNC cable connectors easy)
- Color coding possible
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Product
Electrical
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz
