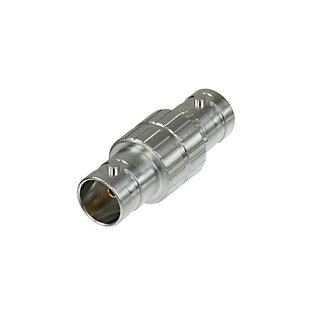

Neutrik NBB75FA BNC feed through coupler
The BNC feed through coupler offers a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Features & Benefits
- Gold plated cage type center contact
- True 75 ? design meets the stringent HD requirements
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Product
Title
NBB75FA
Connection Type
BNC 75 ?
Gender
female
Electrical
Signal Type
HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
1.5 kVdc
Insulation resistance
> 5 G?
Rated voltage
<50 V
VSWR
?1.03/>37 dB up to 1 GHz
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz
Mechanical
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Material
Contacts
Brass (CuZn39Pb3) (ground contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Environmental
Temperature range
-30 °C bis +85 °C
| Series: | BNC feed through coupler BNC bushing |
