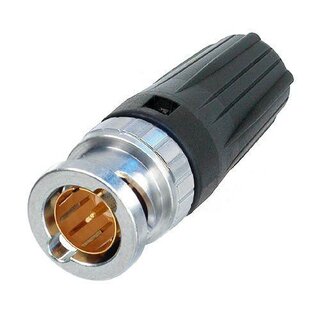

Neutrik NBNC75BJJ9 rearTWIST HD BNC Cable Connector
The rearTWIST BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cable:
Canare V(3-5)-4CFB
Crimp size:
Pin: 1.6 mm (square)
Shield: 5.41 mm (hex)
Features & Benefits
- ?rearTWIST Principle? locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the ?head? of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Product
Title
NBNC75BJJ9
Connection Type
BNC 75 ?
Gender
male
Electrical
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
1,5 kVdc
Impedance
75 ?
Insulation resistance
> 5 G?
Rated voltage
<50 V
VSWR
?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D.
5.3 mm
Cable retention
> 30 N (Center)
Crimp size
5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
Crimp size (pin)
1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Shell plating
Optalloy®
Environmental
Temperature range
-30 °C to +85 °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
| Series: | rearTWIST HD BNC Cable Connectors BNC |
