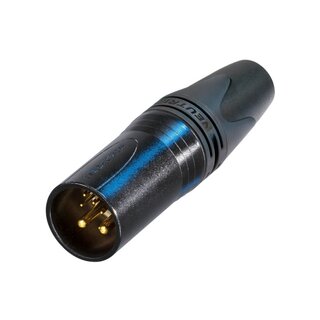

Neutrik NC10MXX-14-B XLR Cable Connector
Easy to assemble 8 + 2 pole male XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief
Features & Benefits
- Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
- Superior ruggedness compared to RJ45 type connectors
- All metal housing offers best overall RF protection and electromagnetic shielding
Product
Title
NC10MXX-14-B
Connection Type
XLR
Gender
male
Electrical
Contact resistance
? 3 m?
Dielectric strength
1 kVdc
Insulation resistance
> 10 G? , 0.1 (after damp heat test)
Number of electronical contacts
8 + 2
Rated current per contact
16 A (power pins), 3 A (data pins)
Cable shield - shell connection
choosable
Transmission performance
CAT 5e
Mechanical
Cable O.D.
8.0 - 10.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)
Material
Bushing
PA / PU
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
POM
Environmental
Flammability
UL 94 HB
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
Manufacturing Standard
IEC 61076-2-103
| Shell: | Black chromium |
