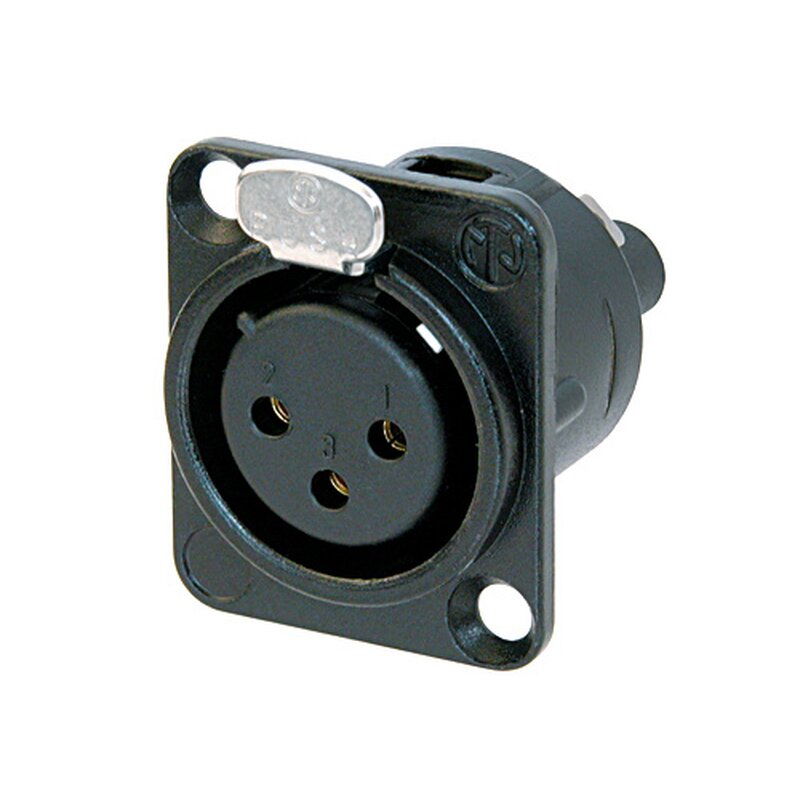

Neutrik NC3FD-S-1-B XLR Chassis Connector
3 pole female receptacle, D-size metal body, screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20), black metal housing, gold contacts, UL recognized component
Features & Benefits
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Screw terminals
Product
Title
NC3FD-S-1-B
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
3 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
0.14 mm² bis 0.5 mm²
Wiresize
26 AWG - 20 AWG
Wiring
screw terminals
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
D
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Temperature range
-30 °C to +80 °C
| Contacts: | Goldplated pins |
| Series: | DL D |
| Shell: | Black chromium |
