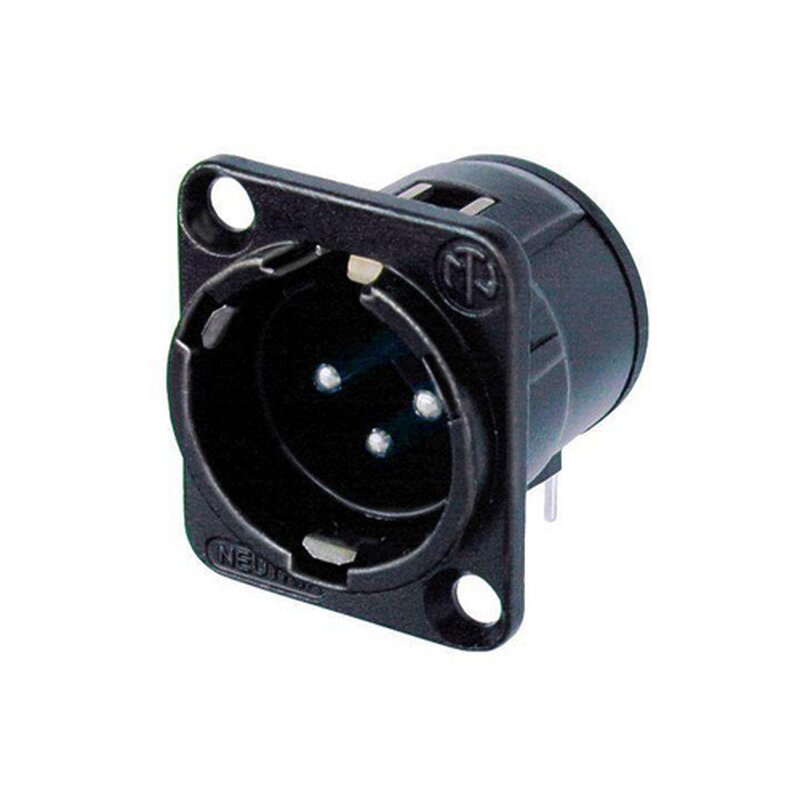

Neutrik NC3MD-H-BAG XLR Chassis Connector
3 pole male receptacle, horizontal PCB mount, black metal housing, silver contacts
Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.
Features & Benefits
- D-shape metal shell
- Optimal RF protection using 3 shield contacts
- Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
- Front or rear panel mount
Product
Title
NC3MD-H-BAG
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
D
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
| Contacts: | Silver pins |
| Series: | D |
| Shell: | Black chromium |
