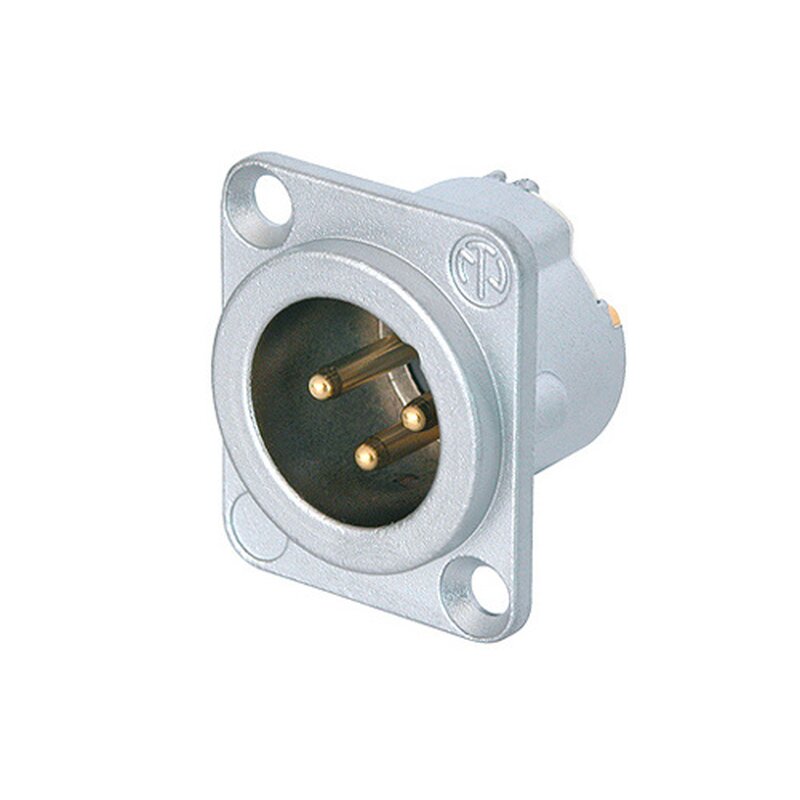

Neutrik NC3MD-LX-HE XLR Chassis Connector, velour chromium shell, goldplated contacts
3 pole male receptacle, solder cups, velour chromium housing, gold contacts
Exclusive version of standard DLX Series. Valuable velour chromium plating. Extra high temperature resistant insulator material.
Features & Benefits
- Extra high temperature resistant insulator material
- Flammability UL94V-0
- Valuable velour chromium plating of shell
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- Optional connection to easily join pin 1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Product
Title
NC3MD-LX-HE
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyphenylene Sulfide (PPS 40% GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Velour Chromium
Environmental
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
| Contacts: | Goldplated pins |
| Series: | DLX |
| Shell: | Velour chromium |
| Gender: | male |
| Shipping weight: | 0,10 Kg |
| Product weight: | 0,01 Kg |
