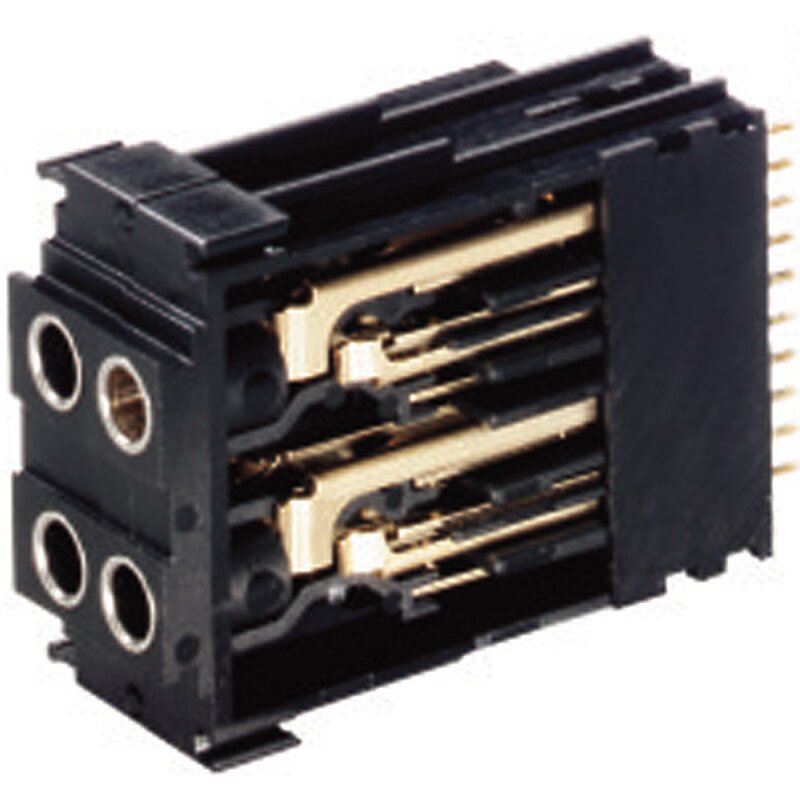

Neutrik NJ3TTA-4-P Patch Panel Accessory

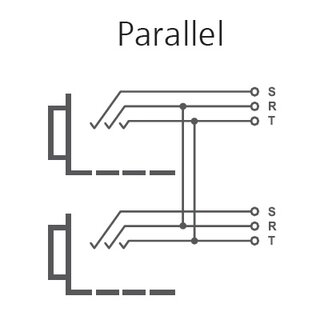

Blocks of 2 pre-configured jack-pairs, parallel, cover ident color: red
Product
Title
NJ3TTA-4-P
Connection Type
Patch Panel
Electrical
Signal Type
Digital suitability acc. AES/EBU (3.072 Mb/s and 6.144 Mb/s)
Contact resistance
20 m?
Contact resistance
< 25 m?
Dielectric strength
1 kVdc
Frequencyrange
DC to > 50 MHz
Insulation resistance
> 1 G? @ 500 V dc
Channel separation
> 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated
> 40 dB @ 6 MHz, 110 terminated
Mechanical
Insertion force
< 10 N
Withdrawal force
> 8 N
Lifetime
> 5000 mating cycles
Material
Contact plating
TRIBOR® (0.2 µm AuCo over 2 µm NiP) (Jacks)
Contacts
Bronze (CuSn6) (Jacks)
Shell
PA 66 blend (Jacks)
Environmental
Temperature range
-30 °C to +80 °C
| Series: | Patch Panel accessories |
