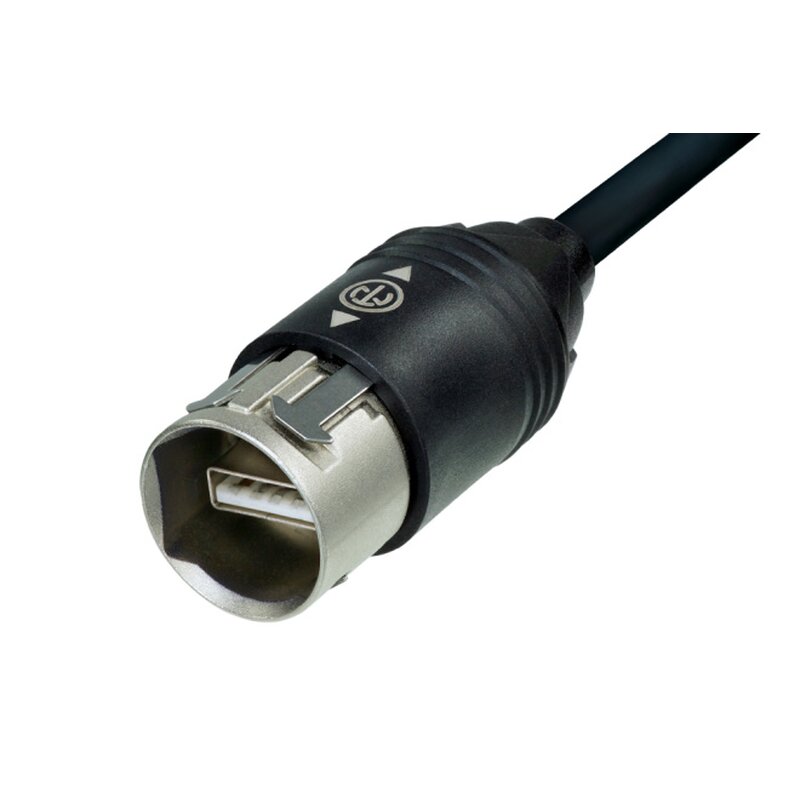

Neutrik NKUSB-1 USB
The USB 2.0 patch cables with overmolded flex relief and rugged metal cable carrier fit and lock with NAUSB-W-*. One cable end offers an USB connector type A, the other side offers a USB connector type B.
* The cables are available in 1 m, 3 m and 5 m cable length.
|
|
| NKUSB-* side 1 with USB type A | NKUSB-* side 2 with USB type B |
Features & Benefits
- USB 2.0 compliant - data rate up to 480 MBit/s
- Dust and water resistant acc. to IP65 safety standard in combination with NAUSB-W*
- Push Pull mating design provides secure locking system if mated with NAUSB-W*
- Shielded connection - high noise immunity and EMI protection
- Removable rugged diecast cable carrier
- Mates with conventional USB receptacles and NAUSB if cable carrier is removed
Product
Title
NKUSB-*
Material
Contact plating
Au
Contacts
Brass (CuZn39Pb3)
Insert
PVC
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Flammability
UL 94 V-0
Standard compliance
USB 2.0
Temperature range
-25 °C to +85 °C
| Series: | USB USB Patchkabel |
