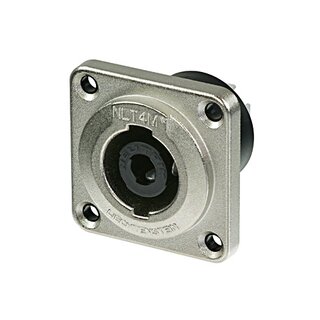

Neutrik NLT4MP Speakon 4 pole male chassis connector, metal housing, solder or ¼" flat tabs
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
- Extremely robust metal housing designed for harsh and demanding environment
- Ideal product for touring applications and harsh environments
- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Uses precise “Quick Lock” system
- Mates with all currently available speakON products
- Weatherproof built-in gasket meets IP 54 protection class (4 pole)
- 4 pole version has UL Recognized components, CSA listed
- 4 type range - also male cable connector and female receptacle on 4-pole version
Product
Title
NLT4MP-BAG
Connection Type
speakON
Gender
male
Electrical
Contact resistance
< 2 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 10 G? (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Chassis shape
square G-size flange
Layout
four thru holes
Material
Contact plating
4 µm Ag
Contacts
Spring copper
Insert
Polyamide (PA 6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1) black chrome
Environmental
Flammability
UL 94 HB
Protection class
IP 54 (mated condition)
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
