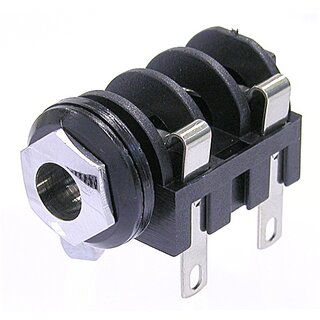

Neutrik NMJ2HC-S Jack M Series
1/4" mono jack, unswitched, with chrome ferrule and standard solder lugs, mounting nut included
Features & Benefits
- Wide body and extremely durable contacts
- Mates with all mono A-gauge plugs acc. EIA RS-453 standard
Product
Title
NMJ2HC-S
Connection Type
Jack
Gender
female
Electrical
Contact resistance
< 15 m?
Dielectric strength
1 kVdc
Insulation resistance
? 1 G? @ 500 V dc
Rated current per contact
3 A
Mechanical
Insertion force
< 30 N
Withdrawal force
7 N
Lifetime
> 10000 mating cycles
Panel thickness
< 4.7 mm
Wiring
Horizontal PCB mount
Locking device
Retention spring
Mounting direction
Rear mounting
Chassis shape
11.4 mm
Material
Cap / Nut / Washer
PA 6.6 15% GR
Contact plating
2 µm Ni
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6.6 15 % GR)
Environmental
Standard compliance
EIA RS 453, IEC 60603-11
Solderability
Complies with IEC 68-2-20
Temperature range
-25 °C to +70 °C
| Series: | M |
