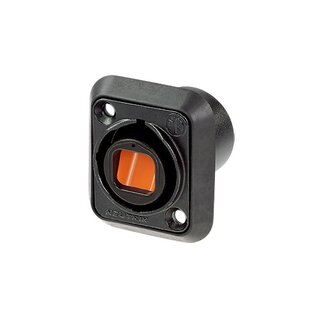

Neutrik NO12FDW-A opticalCON MTP® 12 Chassis Connector
The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance. The housing seal is used for color coding and IP protection.
Features & Benefits
- Ruggedized and dirt-protected 12-channel fiber optic connection system
- For point-to-point multichannel routing
- Laser protective metal shutter seals dust proof with two-component rubber gasket
- Dust and water resistant according to IP65 in mated condition
- Accommodates standard MTP® ELITE male connectors on the rear for simple installation
- Rubber sealing gasket (black, blue, green to identify fiber mode)
Product
Title
NO12FDW-A
Gender
female
Mechanical
Insertion force
< 45 N
Withdrawal force
< 45 N
Lifetime
> 2500 mating cycles
Locking force
1000 N
Locking device
Push-Pull
Mounting direction
Front mounting
Chassis shape
D
Environmental
Flammability
UL 94 HB
Temperature range
-40 °C to +75 °C
Optical
Insertion loss
< 0.9 dB / connection
