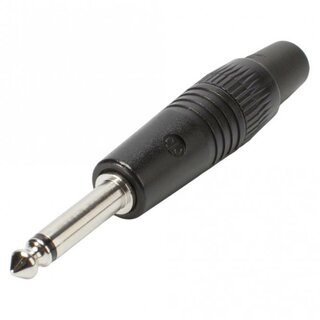

Neutrik NP2C-BAG2 pole 1/4" professional phone plug, black metal housing, Nickel contacts
Features & Benefits
Rugged diecast metal shell
Chuck type strain relief for optimum cable protection
Precision machined one-piece contacts - avoid hook up of tip contact
Meets all prevailing standards
Product
Title
NP2C-BAG
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m? (inner)
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
depends on mating connector A
Rated voltage
50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Material
Bushing
Polyacetal (POM) + PU
Contact plating
2 µm Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C
| Material: | Metal |
| Shell: | Black chromium |
| Shipping weight: | 0,10 Kg |
