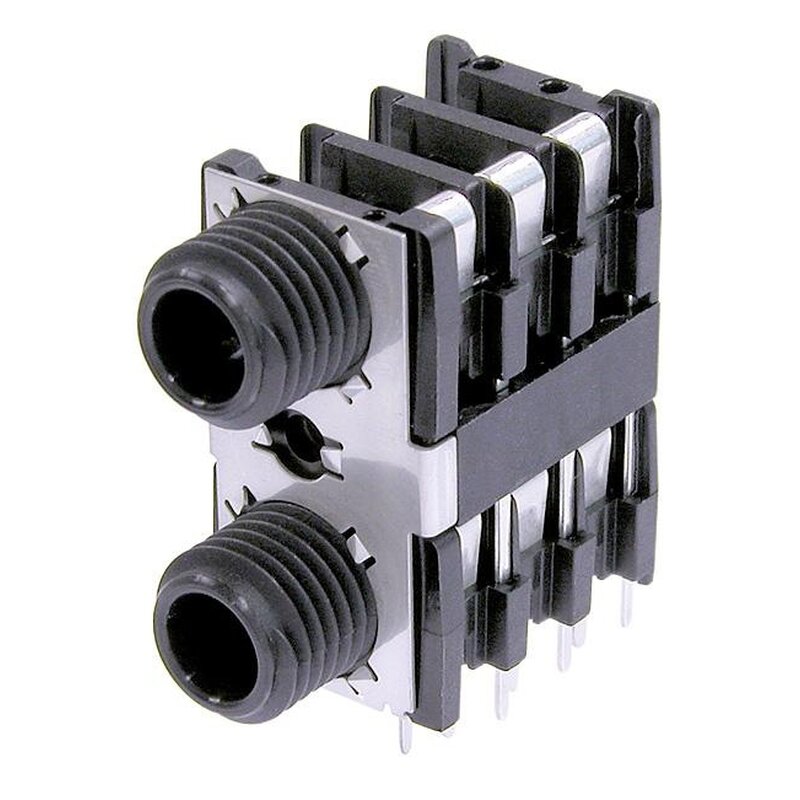

Neutrik NSJ12HF-1 Stacking Jack
Stereo dual jack, full threaded nose
The 1/4" stacking jack features highest board packing density as two jacks are in a single footprint and as they fit in 1 RU.
Please note: Fixing nut and washers must be ordered separately.
Features & Benefits
- Stereo dual slim jack socket for PCB mounting with switch contacts
- Highest board packing density as two jacks are in a single footprint, fit in 1 RU
- Mates with A-gauge plugs acc. EIA RS-453
Product
Title
NSJ12HF-1
Connection Type
Jack
Gender
female
Electrical
Contact resistance
< 15 m? (Top row) and < 10 m? (Bottom row)
Contact resistance
< 15 m? (Top row) and < 10 m?
Dielectric strength
1 kVdc
Insulation resistance
? 1 G? @ 500 V dc
Rated current per contact
3 A
Rated current per contact
0,50 A @ 50 V (Switch contact)
Switching contacts
2 x 3
Mechanical
Insertion force
< 30 N
Withdrawal force
> 10 N
Lifetime
> 10000 mating cycles
Panel thickness
< 3 mm
Wiring
Horizontal PCB mount
Locking device
Retention spring
Mounting direction
Rear mounting
Chassis shape
11.45 mm
Material
Cap / Nut / Washer
PA 6.6 15% GR
Contact plating
2 µm Ag
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6.6 15 % GR)
Ring Nut
Brass (Ni plated)
Environmental
Standard compliance
EIA RS 453, IEC 60603-11
Solderability
Complies with IEC 68-2-20
Temperature range
-25 °C to +70 °C
| Series: | Stacking Jacks |
