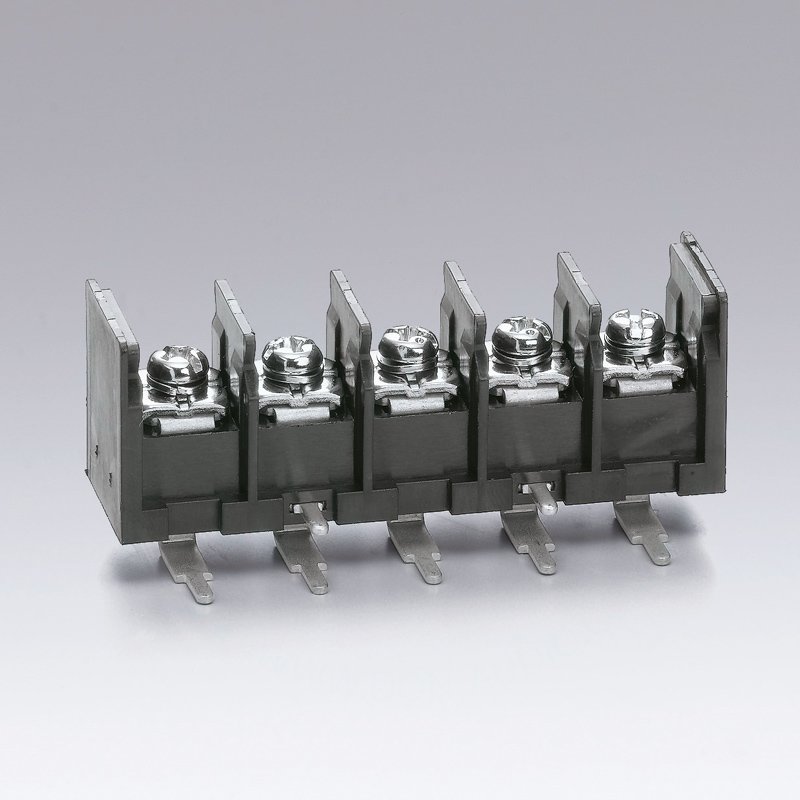

Terminal Block ML-270-S2G1YF, 250V-10A, Spacing 10mm
ML-270-S2G1YF Terminal Block
Rating: 250V-10A
Pin spacing: 10mm
Isulation: DC500V, 1000MOhm min.
Dielectric strength: AC2000V (1 min)
Number of Poles:
Material: P.B.T.Screw: screw with square washer (M3×8)
Suitable wire / wire range: - / -
Corresponding article:
Terminal:Right-Angle PC terminal
Specifications
Rating: 250V-10A
Pin spacing: 10mm
Isulation: DC500V, 1000MOhm min.
Dielectric strength: AC2000V (1 min)
Number of Poles:
Material: P.B.T.Screw: screw with square washer (M3×8)
Suitable wire / wire range: - / -
Corresponding article:
Terminal:Right-Angle PC terminal
Product weight: | 0,01 Kg |
