Terminal Block ML-500-CS, 250V-10A, Spacing 9.5mm
Sato Parts

Item number: ML-500-CS

Category: Terminal blocks

Price on application
Ready for shipment in 14 days

There are variations of this item. Please select the variation you wish.

Terminal Block ML-500-CS-20P, 250V-10A, 20Poles, Spacing 9.5mm
Ready for shipment in 14 days

Shipping time: 16 - 17 workdays

41,92 € *
Terminal Block ML-500-CS-40P, 250V-10A, 40Poles, Spacing 9.5mm
Ready for shipment in 14 days

Shipping time: 16 - 17 workdays

74,14 € *

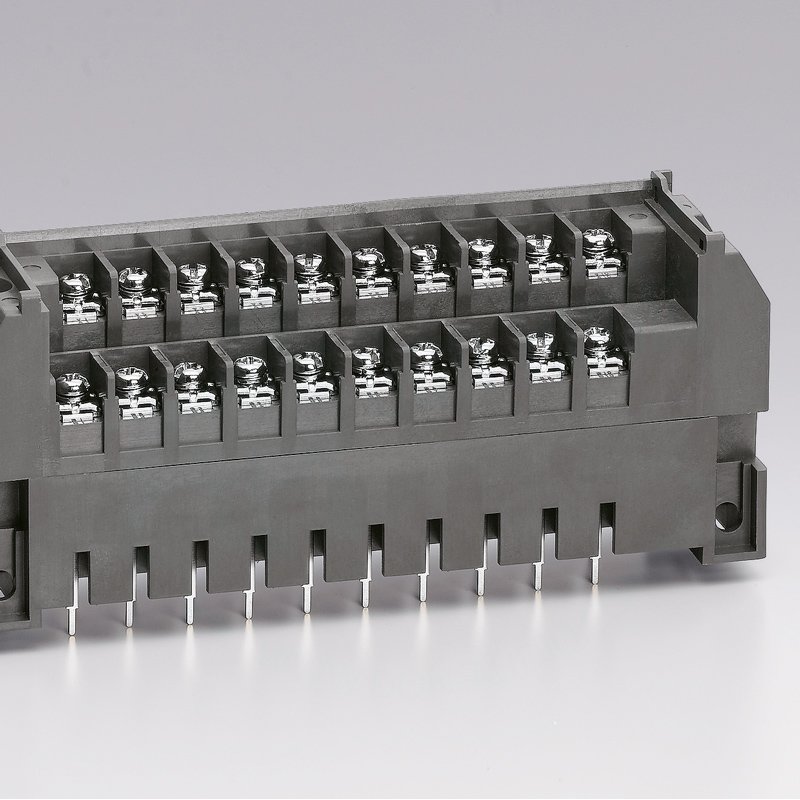

ML-500-CS Terminal Block

Specifications


Rating: 250V-10A
Pin spacing: 9.5mm
Isulation: DC500V, 1000MOhm min.
Dielectric strength: AC2000V (1 min)
Number of Poles:
Material: P.B.T.Screw: screw with square washer (M3.5×8)
Suitable wire / wire range: - / 2.5mm2?0.4mm2 (AWG13?AWG22)
Corresponding article:
Terminal:PC terminal
Product weight: 0,01 Kg
