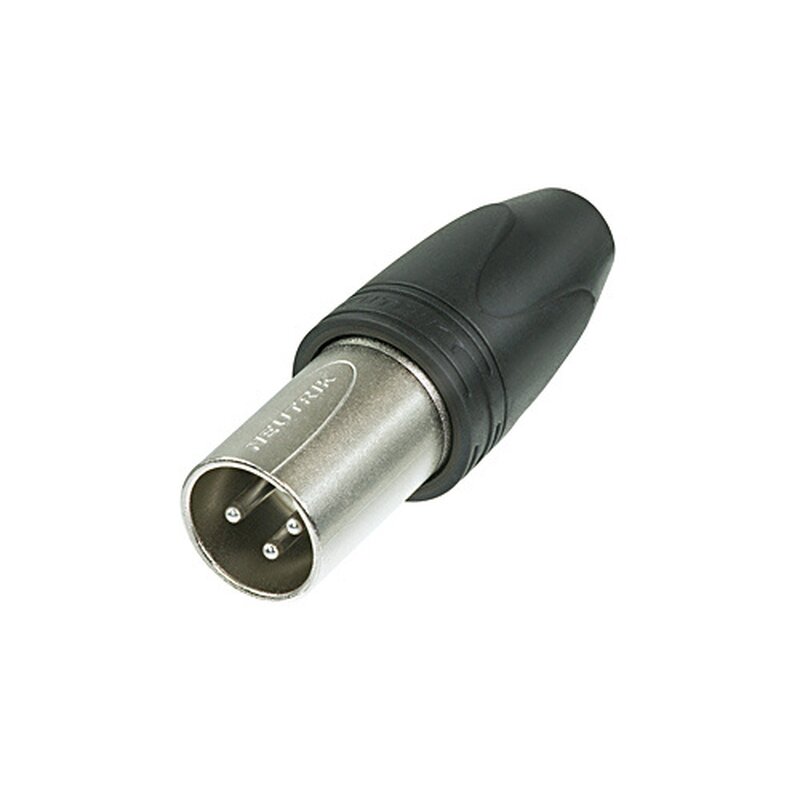

Neutrik NC3MXX-HD-D XLR Cable Connector
Heavy duty male 3 pole XLR cable connector for outdoor use.
Features & Benefits
- Dust and water ingress sealing according to IP67 in combinition with HD cable connector NC3FXX-HD*
- Rubber sealing jacket protects against water ingress and mechanical shock
- Gold contacts
Product
Title
NC3MXX-HD-D
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
6.0 - 8.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Sealing jacket
EPDM
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
| Series: | XX-HD |
| Pins: | 3-Pol |
| Shell: | Black chromium |
| Gender: | |
| Poids à l'expédition: | 0,10 Kg |
