Neutrik NBTB75INN5 Cable Jacks Panel Version

Item number: NBTB75INN5-DON

Category: Neutrik

11,67 €

including 19% VAT., plus shipping

Ready for shipment in 50 days

Shipping time: 52 - 53 workdays

BNC cable jack for panel mount, isolated

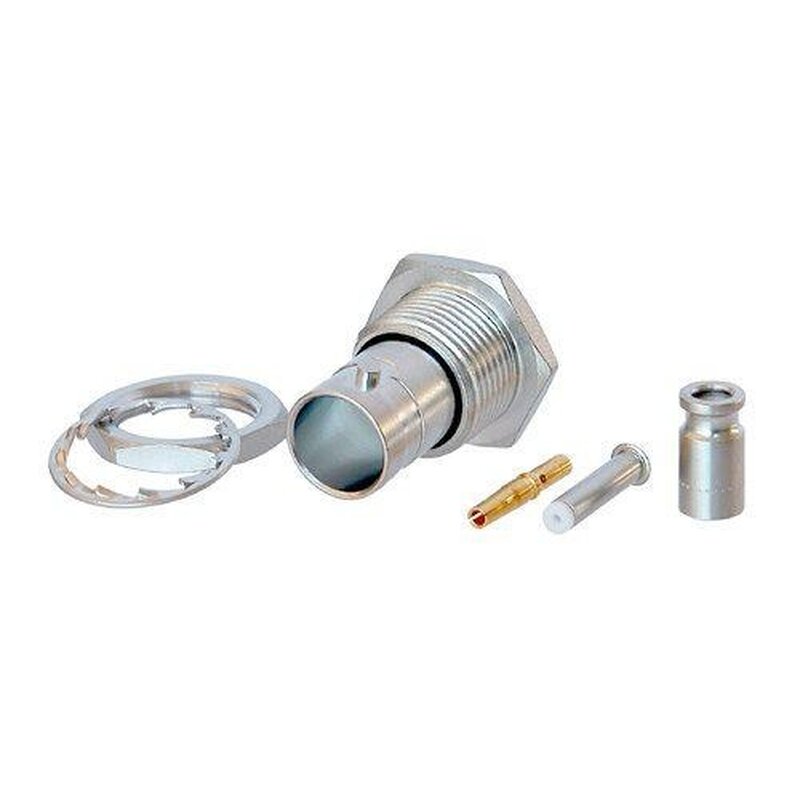

Neutrik's BNC cable jacks for panel mount offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Suitable cables:
Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (Bulk)

Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)



Features & Benefits

  • Gold plated center contact
  • True 75 ? design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
Product
Title
NBTB75INN5
Connection Type
BNC 75 ?
Gender
female
Electrical
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
0,75 kVdc
Impedance
75 ?
Insulation resistance
> 5 G?
Rated voltage
<50 V
VSWR
?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D.
4.0 - 7.7 mm
Cable retention
> 30 N (Center)
Crimp size
4,53 Hex crimp (shield) acc. IEC 60803 (die designation C)
Crimp size (pin)
1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Shell plating
Optalloy®
Environmental
Temperature range
-30 °C to +85 °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
Series: BTB Cable Jacks Panel Version
